- Construction of double wall 16 & 20 ga, type 304 SS, # 4 polish
- ID 12"w x 12"h x 13"d
- OD 18"w x 14" h x 15"d
- SS frame doors w/ 1/4" clear acrylic glass window, black powder painted pivot hinges, EPDM gasket; SS pull handle & mechanical interlock
- 1 1/2" x 1 1/2" x 16 ga SS mounting angle

- Construction of double wall 20 ga, type 304 SS, # 4 polish
- ID 18"w x 18"h x 18"d
- OD 24"w x 20" h x 20"d
- SS frame doors w/ 1/4" clear acrylic window, black powder painted pivot hinges, EPDM gasket; SS pull handle & mechanical interlock
- 1 1/2" x 1 1/2" x 16 ga SS mounting angle (Trim)

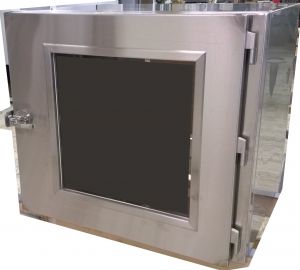

- Construction of double wall 20 Ga, type 304 SS, #4 polish
- ID 18"W x 18"H x 28"D
- OD 24"W x 20"H x 30"D
- Two(2) SS Door, 1/4" Tempered Safety Glass Viewing Windows
- Latching compression handles
- Mechanical interlock
- Wall trim angles included

NO SPEC AVAILABLE AT THIS MOMENT

- Construction of double wall 16 & 20 ga, type 304 SS, #4 satin finish
- ID 18"w x 22"h x 22"d
- OD 24"w x 24"h x 24"d
- SS frame doors w/ window, SS pin hinges, EPDM gasket
- Stainless steel latching handle & mechanical interlock
- 1 1/2" x 1 1/2" x 16 ga SS mounting angle

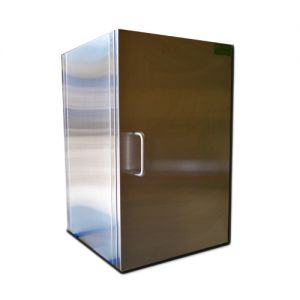

- Construction of double wall 20 ga, type 304 SS, # 4 polish
- ID 18"w x 34"h x 22"d
- OD 24"w x 36" h x 24"d
- SS frame doors w/ no window, black powder painted pivot hinges, EPDM gasket
- SS pull handle & mechanical interlock
- 1 1/2" x 1 1/2" x 16 ga SS mounting angle & (2) lower SS support brackets
- (1) Solid SS shelf w/ adjustable track

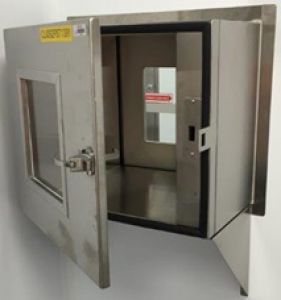

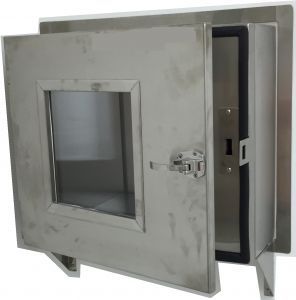

- Construction of double wall 20 ga, type 304 SS, # 4 polish
- ID 24"w x 24"h x 24"d
- OD 30"w x 26" h x 26"d
- SS frame doors w/ 1/4" clear acrylic window, black powder painted pivot hinges, EPDM gasket; SS pull handle & mechanical interlock
- 1 1/2" x 1 1/2" x 16 ga SS mounting angle (Trim)

- Construction of double wall 20 ga, painted steel exterior & type 304 SS, # 4 polish, interior
- ID 24"w x 24"h x 2"d
- OD 30"w x 26"h x 26"d
- SS frame doors w/ 1/4" clear safety glass window, pivot hinges, gasket
- 1/4 turn chrome plated handle & mechanical interlock
- 2" x 2" x 16 ga SS mounting angle (Trim)

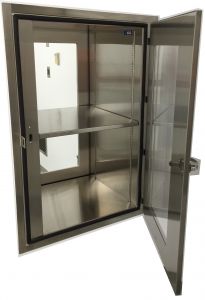

- Construction of double wall 20 Ga, type 304 SS, #4 polish
- ID 24"W x 30"H x 24"D
- OD 30"W x 32"H x 30"D
- Two(2) SS Door, 1/4" Tempered Safety Glass Viewing Windows
- Latching compression handles
- Mechanical interlock
- Wall trim angles included

- Construction of double wall 20 ga, type 304 SS, # 4 polish
- ID 30"w x 30"h x 30"d
- OD 36"w x 32" h x 32"d
- SS frame doors w/ 1/4" clear acrylic window, black powder painted pivot hinges, EPDM gasket
- SS pull handle & mechanical interlock
- 1 1/2" x 1 1/2" x 16 ga SS mounting angle (Trim)

- Construction of double wall 20 Ga, type 304 SS, #4 polish
- ID 30"W x 34"H x 34"D
- OD 36"W x 36"H x 36"D
- Two(2) SS Door, 1/4" Tempered Safety Glass Viewing Windows
- Latching compression handles
- Mechanical interlock
- Wall trim angles included

- Construction of double wall 20 Ga, type 304 SS, # 4 polish
- ID 36"w x 36"h x 36"d
- OD 45"w x 42"h x 38"d
- Two (2) S/S Doors, 1/4" laminated viewing windows, latching compression handles
- Mechanical interlock
- Wall trim angles included

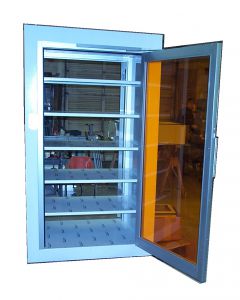

- Construction of double wall 16 ga epoxy painted galvanized steel (alternate SS #304SS, #4 satin finish)
- ID 36"w x 72"h x 24"d
- OD 48"w x 84"h x 33"d
- Anodized aluminum framed doors w/ window, butts & hinges, EPDM gasket
- Door handle & electrical interlock
- 1 1/2" x 1 1/2" x 16 ga SS mounting angle
- 5 ea. Polypro lined shelves
- Interior surfaces laminated with 1/8" thick white Polypro
- 6 ea. Polypro dividers per shelf

- Construction of double wall 16 ga 316L stainless steel w/ #4 satin finish
- ID 42"w x 42"h x 42"d
- OD 48"w x 44"h x 44"d
- 16 ga 316L stainless steel framed doors w/ tempered glass window, stainless steel pin hinges, EPDM gasket
- Stainless steel compression latch handle & mechanical interlock
- 1 1/2" x 1 1/2" x 16 ga welded 316L mounting angle
- Unit supplied with support legs on one side

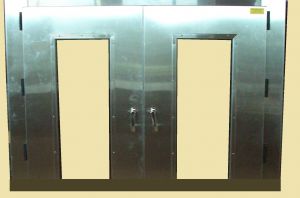

*** Double Door Design ***
- Construction of double wall 16 ga 304 stainless steel w/ #4 satin finish
- ID 48"w x 30"h x 36"d
- OD 53"w x 36"h x 38"d
- Voltage 120-1-60 1.0 amp
- 16 ga 304 stainless steel framed doors w/ tempered glass window, stainless steel pin hinges, EPDM gasket
- Stainless steel compression latch handle & electric magnetic door interlocks
- 1 1/2" x 1 1/2" x 16 ga welded 304 mounting angle

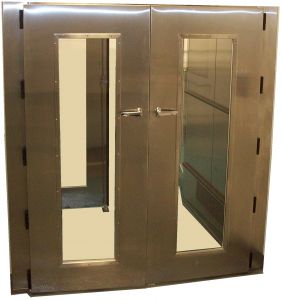

*** Double Door Design ***
- Construction of double wall 16 ga 304 stainless steel w/ #4 satin finish
- ID 48"w x 48"h x 48"d
- OD 53"w x 54"h x 50"d
- Voltage 120-1-60 1.5 amps
- 16 ga 304 stainless steel framed doors w/ tempered glass window, stainless steel pin hinges, EPDM gasket
- Stainless steel compression latch handle & electric magnetic door interlocks
- 1 1/2" x 1 1/2" x 16 ga welded 304 mounting angle

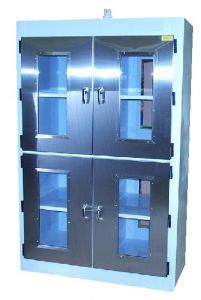

*** Quad (4) Door Design ***
- Construction of double wall 16 ga white painted steel
- ID: Four (4) ea. 18"w x 32"h x 24"d sections
- OD: Overall 50"w x 78.5"h x 26"d
- Eight (8) ea. 16 ga 304 stainless steel framed doors w/ tempered glass window, stainless steel pin hinges, EPDM gasket
- Stainless steel compression latch handle & mechanical door interlocks
- 1 1/2" x 1 1/2" x 16 ga welded 304 mounting angle
- Interior perforated shelves for ventilation
