- Construction of 16 ga, white epoxy painted steel
- OD 52"w x 44"l x 116"h
- ID 36"w x 36"l x 80"h
- Top blower box to have (1) 2 hp, 208/230/460 v, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1000 cfm to 4" sp, vibration isolated
- 99.97% gasket seal hepa filter mounted in blower box
- (22) PVC nozzles on walls & ceiling @ 6000 fpm each
- Hinged & gasketed doors for motor / blower & filter
- Internally mounted control system, microprocessor controlled
- No floor, ceiling mounted sensor for automatic start
- (2) 36" x 80" anodized aluminum frame doors, clear anodized w/1/4" acrylic inserts, push/pull hardware, closures & electrical interlocks w/E-stop
- 35% disposable prefilters in low wall mounted aluminum grilles
- 60 fc flush mounted LED lighting
- Unit shipped in (2) sections

- Construction of laminated particleboard, interior surfaces covered with white Kydex, exterior surfaces covered w/ white plastic laminate, internal supply and return air chases to be painted
- OD 52"w x 56"l x 116"h
- ID 36"w x 48"l x 80"h
- Top blower box to have (1) 2 hp, 208/230/460V, 3 phase, 60 HZ , direct drive high pressure motor blower, developing 1000 cfm to 4” sp, vibration isolated
- 99.97% gasket seal hepa filter mounted in blower box
- (24) PVC nozzles on walls & ceiling @ 6000 fpm each
- Hinged & gasketed doors for motor / blower & filter
- Internally mounted control system, microprocessor controlled
- No floor, ceiling mounted sensor for automatic start
- (2) 36" x 80" anodized aluminum frame doors, clear anodized w/ 1/4" acrylic inserts, push/pull hardware, closures & electrical interlocks w/ E-stop
- 35% disposable prefilters in low wall mounted aluminum grilles
- 60 FC flush mounted fluorescent lighting
- Unit shipped in (2) sections

- Construction of 16 ga, white epoxy painted steel
- OD 52"w x 60"l x 120"h
- ID 36"w x 56"l x 80"h
- Top blower box to have (1) 5 hp, 208/230/460 v, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 2000 cfm to 4" sp, vibration isolated
- 99.97% gasket seal hepa filter mounted in blower box
- (40) PVC nozzles on walls & ceiling @ 6000 fpm each
- Hinged & gasketed doors for motor, blower & filter
- Internally mounted control system, microprocessor controlled
- No floor, ceiling mounted sensor for automatic start
- (2) 36" x 80" anodized aluminum frame doors, clear anodized w/1/4" acrylic inserts, push/pull hardware, closures & electrical interlocks w/E-stop
- 35% disposable prefilters in low wall mounted aluminum grilles
- 60 fc flush mounted LED lighting
- Unit shipped in (2) sections

- Construction of 16 Ga., white epoxy painted steel
- ID 40"w x 90"h x 64"d
- OD 52"w x 120"h x 72"d
- Top blower box to have (1) 5 HP, 208V, 230V OR 460V 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- 1ea 99.99% gasket seal HEPA filter mounted in blower box
- (40) PVC nozzles on walls & ceiling @ 7000 FPM each
- Hinged & Gasketed doors for motor / blower & filter
- Internally mounted control system, PLC controlled
- No floor, ceiling mounted sensor for automatic start
- (2) 36" x 80" anodized aluminum frame doors, clear anodized w/ 1/4" acrylic inserts, push/pull hardware, closures & electrical interlocks w/ E-stop
- 35% disposable prefilters in low wall mounted painted steel grilles
- Flush mounted LED lighting

- Construction of 16 ga white, epoxy painted steel
- OD 52"w x 84"l x 120"h
- ID 36"w x 80"l x 80"h
- Top blower boxes to have (1) 5 HP, 460 V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM to 4" SP, vibration isolated
- 99.99% gasket seal hepa filter mounted in blower box
- (44) PVC nozzles on walls & ceiling @ 7500 fpm each
- Hinged & gasketed doors for motor / blower & filter
- Internally mounted control system, PLC controlled
- No floor, ceiling mounted sensor for automatic start
- (2) 36" x 80" anodized aluminum doors , clear anodized w/ 1/4" acrylic inserts, push/pull hardware , closures & electrical interlocks w/ E-stop
- 35% Disposable prefilters in low wall mounted aluminum grilles
- 60 FC flush mounted fluorescent lighting
- Unit shipped in (2) sections

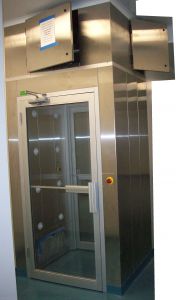

- Construction of 16 ga, type 304 SS
- OD 58"w x 56"l x 116"h
- ID 36"w x 52"l x 80"h
- Top blower box to have (1) 5 HP, 208/230/460 v, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM to 4" sp, vibration isolated
- 99.99% gasket seal hepa filter mounted in blower box
- (32) PVC nozzles on walls & ceiling @ 6000 FPM each
- Hinged & gasketed doors for motor / blower & filter
- Internally mounted control system, PLC controlled
- No floor, ceiling mounted sensor for automatic start
- (2) 36” x 80” anodized aluminum frame doors, clear anodized w/ 1/4" acrylic inserts, push/pull hardware, closures & electrical interlocks w/E-stop
- 35% disposable prefilters in low wall mounted aluminum grilles
- 60 FC flush mounted fluorescent lighting
- Unit shipped in (2) sections

- Construction of 16 ga, white epoxy painted steel
- OD 58"w x 60"l x 120"h
- ID 36"w x 56"l x 80"h
- Top blower box to have (1) 5 HP, 208/230/460 v, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 cfm to 4" SP, vibration isolated
- 99.99% gasket seal hepa filter mounted in blower box
- (36) PVC nozzles on walls & ceiling @ 7500 fpm each
- Hinged & gasketed doors for motor & blower
- Internally mounted control enclosure, w/PLC touch screen mounted on unit
- No floor, ceiling mounted sensor for automatic start
- (2) 36" x 80" aluminum frame doors & frames w/ 1/4" clear acrylic window, electrically interlocked w/ (3) E-stops
- 60 FC flush mounted fluorescent or LED lighting
- 35% disposable prefilters in low wall mounted grilles
- Unit assembled & tested in the shop prior to shipping
- Ships in (2) sections

- Construction of 16 ga, white epoxy painted steel
- OD 52"w x 72"l x 120"h
- ID 36"w x 68"l x 80"h
- Top blower box to have (1) 5 hp, 208/230/460 v, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 2000 cfm to 4" sp, vibration isolated
- 99.97% gasket seal hepa filter mounted in blower box
- (40) PVC nozzles on walls & ceiling @ 6000 fpm each
- Hinged & gasketed doors for motor, blower & filter
- PLC touchscreen with audible alarm and emergency stop
- No floor, ceiling mounted sensor for automatic start
- (2) 36" x 80" anodized aluminum frame doors, clear anodized w/1/4" acrylic inserts, push/pull hardware, closures & electrical interlocks w/E-stop
- 35% disposable prefilters in low wall mounted aluminum grilles
- 2 60 fc recessed LED fixtures
- Unit shipped in (2) sections

- Construction of 16 ga white painted steel w/ bottom wall caps of type 304 SS
- OD 58"w x 96"l x 120"h
- ID 36"w x 92"l x 80"h
- Top blower boxes to have (2) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" sp, vibration isolated
- 99.99% Gasket seal hepa filter mounted in blower box
- (68) PVC nozzles on walls & ceiling @ 7000 fpm each
- Hinged & gasketed doors for motor / blower & filter
- Internally mounted control system, microprocessor controlled
- No floor, ceiling mounted sensor for automatic start
- (2) 36" x 80" anodized aluminum doors & frames, clear anodized w/ 1/4" acrylic inserts, push/pull hardware, closures & electrical interlocks w/ E-stop
- 35% disposable prefilters in low wall mounted aluminum grilles
- 60 FC flush mounted fluorescent lighting
- Magnehelic gauges for (1) hepa & (1) prefilter
- Unit shipped in (4) sections

- Construction of 16 ga, white epoxy painted steel
- OD 54"w x 72"l x 120"h
- ID 42"w x 70"l x 80"h
- Top blower box to have (1) 5 HP, 208/230/460 v, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 cfm to 4" SP, vibration isolated
- 99.99% gasket seal HEPA filter mounted in blower box
- (40) PVC nozzles on walls & ceiling @ 7500 fpm each
- Hinged & gasketed doors for motor & blower
- Internally mounted control enclosure, w/PLC touch screen mounted on unit
- No floor, ceiling mounted sensor for automatic start
- (2) 42" x 80" aluminum frame doors & frames w/ 1/4" clear acrylic window, electrically interlocked w/ (3) E-stops
- 60 FC flush mounted LED lighting
- 35% disposable prefilters in low wall mounted grilles
- Unit assembled & tested in the shop prior to shipping
- Ships in (2) sections

- Construction of 16 ga, white epoxy painted steel
- OD 72"w x 72"l x 120"h
- ID 48"w x 70"l x 80"h
- Top blower box to have (1) 5 HP, 460V, 3 phase, 50 HZ, direct drive high pressure motor blower, developing 1800 cfm to 4" SP, vibration isolated
- 99.99% gasket seal HEPA filter mounted in blower box
- (40) PVC nozzles on walls & ceiling @ 7500 fpm each
- Hinged & gasketed doors for motor & blower
- Internally mounted control enclosure, w/ PLC controller mounted on unit
- No floor w/ ceiling mounted sensor for automatic start
- (2) 48" x 80" Anodized aluminum frame doors & frames w/ 1/4" clear acrylic window, electrically interlocked w/ (3) E-stop
- 60 FC flush mounted fluorescent lighting
- 35% disposable prefilters in blower box above the HEPA
- Unit assembled & tested in the shop prior to shipping

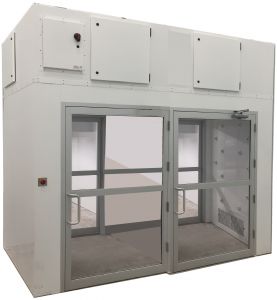

- Construction of 16 ga galvanealed (painted or unpainted) or (304SS/316SS) (Specify)
- OD 89"w x 120"l x 120"h
- ID 72"w x 116"l x 80"h
- Top blower box to have (2) 5 HP, 460V, 3 phase, 50 HZ, direct drive high pressure motor blower, developing 1800 cfm to 4" SP, vibration isolated
- 99.99% gasket seal HEPA filter mounted in blower box
- (80) PVC nozzles on walls & ceiling @ 7500 fpm each
- Hinged & gasketed doors for motor & blower
- Internally mounted control enclosure, w/ PLC controller mounted on unit
- No floor w/ ceiling mounted sensor for automatic start
- (4) 36" x 80" Anodized aluminum frame doors & frames w/ 1/4" clear acrylic window, electrically interlocked w/ (3) E-stop
- 60 FC flush mounted LED lighting
- Ionization pulse bars
- 35% disposable prefilters in blower box above the HEPA
- Unit assembled & tested in the shop prior to shipping
- Unit ships in four pieces

- Construction of 16 ga galvaneal unpainted steel
- OD 94"w x 96"l x 120"h
- ID 72"w x 94"l x 80"h
- Top blower box to have (2) 5 HP, 460V, 3 phase, 50 HZ, direct drive high pressure motor blower, developing 1800 cfm to 4" SP, vibration isolated
- 99.99% gasket seal HEPA filter mounted in blower box
- (80) PVC nozzles on walls & ceiling @ 7500 fpm each
- Hinged & gasketed doors for motor & blower
- Internally mounted control enclosure, w/ PLC controller mounted on unit
- No floor w/ ceiling mounted sensor for automatic start
- (4) 36" x 80" Anodized aluminum frame doors & frames w/ 1/4" clear acrylic window, electrically interlocked w/ (3) E-stop
- 60 FC flush mounted LED lighting
- 35% disposable prefilters in blower box above the HEPA
- Unit assembled & tested in the shop prior to shipping
- Unit ships in four pieces
