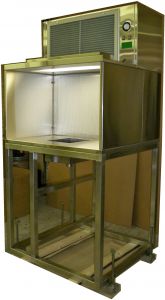

Clean Bench Beverage Filling Application - Class 100 Economy Design (Single Sink)
EL422-SS-SP
Please Call for Pricing
- Face mounted filter with top mounted direct drive blower
1) Constructed of 16 ga, 316 stainless steel (options for painted or unpainted steel)
- Direct drive motor blower w/ (1) 1/3 HP, 115V, motor & electronic speed control
developing 1200 CFM to twice the clean HEPA filter SP, vibration isolated
- Hepa filter to be (1) 24" x 39" x 3.5", 99.99% EFF, 2.75" separatorless media, gasket seal, aluminum frame
- Front mounted 35% 30" x 16" x 1" disposable prefilter in anodized aluminum hinged grilles for incoming air
- 100 FC lighting mounted on top of work surface
- Perforated anodized aluminum discharge diffuser
- Control panel w/ switches for light & motor, pressure gauge for supply filter
2) Tubular steel support framework
- 2" x 2" 16 Ga welded 316 SS tubing w/ levelers
- Side panels to be 0.25" clear acrylic in stainless steel mounting trim
3) Independent worktable, 24" high by 40" deep
- Work deck of 16 ga, type 316 SS with one sink
- Lower, washable prefilter below work surface
4) Dimensions
- 41.5"w x 92.75"h x 38.5"d overall
- 39.5"w x 24"h x 24"d interior
- Face mounted filter with top mounted direct drive blower
1) Constructed of 16 ga, 316 stainless steel (options for painted or unpainted steel)
- Direct drive motor blower w/ (1) 1/3 HP, 115V, motor & electronic speed control
developing 1200 CFM to twice the clean HEPA filter SP, vibration isolated
- Hepa filter to be (1) 24" x 39" x 3.5", 99.99% EFF, 2.75" separatorless media, gasket seal, aluminum frame
- Front mounted 35% 30" x 16" x 1" disposable prefilter in anodized aluminum hinged grilles for incoming air
- 100 FC lighting mounted on top of work surface
- Perforated anodized aluminum discharge diffuser
- Control panel w/ switches for light & motor, pressure gauge for supply filter
2) Tubular steel support framework
- 2" x 2" 16 Ga welded 316 SS tubing w/ levelers
- Side panels to be 0.25" clear acrylic in stainless steel mounting trim
3) Independent worktable, 24" high by 40" deep
- Work deck of 16 ga, type 316 SS with one sink
- Lower, washable prefilter below work surface
4) Dimensions
- 41.5"w x 92.75"h x 38.5"d overall
- 39.5"w x 24"h x 24"d interior
Clean Bench Beverage Filling Application - Class 100 Economy Design (Double Sink)
EL624-TT-SS-SP
Please Call for Pricing
- Face mounted filter with top mounted direct drive blower
1) Constructed of 16 ga, 316 stainless steel (options for painted or unpainted steel)
- Direct drive motor blower w/ (2) 1/3 HP, 115V, motor & electronic speed control
developing 1200 CFM to twice the clean hepa filter SP, vibration isolated
- Hepa filter to be (2) 24" x 36" x 3.5", 99.99% EFF, 2.75" separatorless media, gasket seal, aluminum frame
- Front mounted 35% 30" x 16" x 1" disposable prefilters in anodized aluminum hinged grilles for incoming air
- 100 FC lighting mounted on top of work surface
- Perforated anodized aluminum discharge diffuser
- Control panel w/ switches for light & motor, pressure gauge for supply filter
2) Tubular steel support framework
- 2" x 2" 16 Ga welded 316 SS tubing w/ levelers
- Side panels to be 0.25" clear acrylic in stainless steel mounting trim
3) Independent worktable, 24" high by 40" deep
- Work deck of 16 ga, type 316 SS with double sinks
- Lower, washable prefilter below work surface
4) Dimensions
- 78.5"w x 75"h x 54.5"d overall
- 78.5"w x 24"h x 40"d interior
- Face mounted filter with top mounted direct drive blower
1) Constructed of 16 ga, 316 stainless steel (options for painted or unpainted steel)
- Direct drive motor blower w/ (2) 1/3 HP, 115V, motor & electronic speed control
developing 1200 CFM to twice the clean hepa filter SP, vibration isolated
- Hepa filter to be (2) 24" x 36" x 3.5", 99.99% EFF, 2.75" separatorless media, gasket seal, aluminum frame
- Front mounted 35% 30" x 16" x 1" disposable prefilters in anodized aluminum hinged grilles for incoming air
- 100 FC lighting mounted on top of work surface
- Perforated anodized aluminum discharge diffuser
- Control panel w/ switches for light & motor, pressure gauge for supply filter
2) Tubular steel support framework
- 2" x 2" 16 Ga welded 316 SS tubing w/ levelers
- Side panels to be 0.25" clear acrylic in stainless steel mounting trim
3) Independent worktable, 24" high by 40" deep
- Work deck of 16 ga, type 316 SS with double sinks
- Lower, washable prefilter below work surface
4) Dimensions
- 78.5"w x 75"h x 54.5"d overall
- 78.5"w x 24"h x 40"d interior
