*** Roll-Up Door ***
- Construction of double wall 304 stainless steel
- OD 45"w X 94 5/8"h X 42"d
- ID 24"w x 13.5"h x 40"d
- Two (2) SS Pneumatic Actuated Sliding Doors, 1/4" Anti-Static PVC Viewing Windows
- Doors interlocked to prevent both open at the same time
- Threshold safety sensors
- Internal ionization pulse bars for static control
- Motorized conveyor internal for parts moving
- 1 LED light fixture
- PLC controls
- 460-3-60 volts 2 amps
- Wall Trim Angles Included

*** Roll-Up Door ***
- Construction of double wall 304 stainless steel
- OD 54"w X 78"h X 39"d
- ID 41"w x 40"h x 39"d
- Two(2) SS Motorized Sliding Doors, 1/4" Tempered Safety Glass Viewing Windows
- Doors interlocked to prevent both open at the same time
- Threshold safety sensors
- 120-1-60 volts 15 amps
- Wall Trim Angles Included

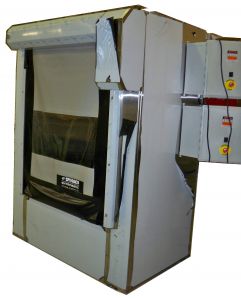

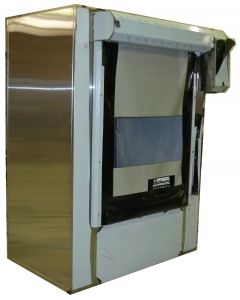

*** Roll-Up Door ***
- Construction of double wall 304 stainless steel
- OD 60"w X 84"h X 38.5"d
- ID 42"w x 48"h x 38"d
- Internal exhaust hood with 6" exhaust connection
- 12" x 20" air intake louver
- Two (2) Automatic High-Speed Vinyl Roll-up Doors With Viewing Window
- 208/240/460-3-60 Volts (SPECIFY VOLTAGE)
- Wall Trim Angles Included
- Conveyor by others

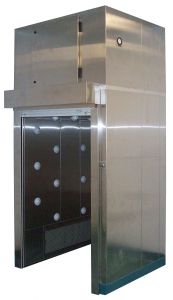

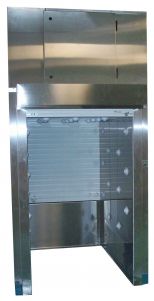

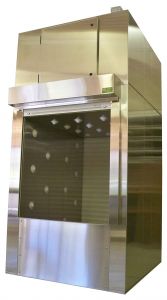

*** Roll-Up Door Air Shower / Pass-Through ***
- Construction of double wall 304 stainless steel
- OD 52"w X 106"h X 60"d
- ID 39.5"w x 66"h x 60"d
- Internal HEPA filter blower for ISO 4 conditions
- Five (5) HP blower 480-3-60 producing 1820 CFM at 4" SP
- One (1) 24" x 24" x 11.5" HEPA filter, 99.99% efficient @ 0.3 Microns
- Timer for air shower blow-off function
- Two (2) Manual (Actuated Available) Aluminum Roll-Up Sliding Doors
- 480-3-60 volts 2 amps
- Wall Trim Angles Included
