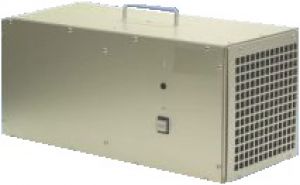

Portable Minette Series
1212-VH
Please Call for Pricing
- Construction of fabricated painted steel (Optional Stainless 304, 316, 321) (Must specify)
- To meet ISO 14644 standards
- Direct drive motor blower sized to deliver 90 FPM filter face velocity.
- Electronic speed control
- 115 Volt, 15 AMP power cord 8 ft. long
- 10" x 10" x 3 1/2" 99.99% HEPA filter, gasket seal
- Discharge through perforated grill
- Optional duct connection(s) on intake and exhaust
- Side access panel for blower & filter
- Washable intake pre-filter
- Optional Aluminum carrying handle.
- Construction of 16ga, anodized aluminum
- O.D. 12"w x 14" h x 22"d
- Construction of fabricated painted steel (Optional Stainless 304, 316, 321) (Must specify)
- To meet ISO 14644 standards
- Direct drive motor blower sized to deliver 90 FPM filter face velocity.
- Electronic speed control
- 115 Volt, 15 AMP power cord 8 ft. long
- 10" x 10" x 3 1/2" 99.99% HEPA filter, gasket seal
- Discharge through perforated grill
- Optional duct connection(s) on intake and exhaust
- Side access panel for blower & filter
- Washable intake pre-filter
- Optional Aluminum carrying handle.
- Construction of 16ga, anodized aluminum
- O.D. 12"w x 14" h x 22"d

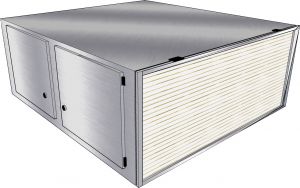

Portable Minette Series
2424-VH
Please Call for Pricing
- Construction of fabricated painted Steel (Optional Stainless 304, 316, 321) (Must specify)
- To meet ISO 14644 standards
- Direct drive motor blower sized to deliver 90 FPM filter face velocity.
- Electronic speed control
- 115 Volt, 15 AMP power cord 8 ft. long
- 22" x 22" x 3 1/2" 99.99% HEPA filter, gasket seal
- Discharge through perforated grill
- Optional duct connection(s) on intake and exhaust
- Side access panel for blower & filter
- Washable intake pre-filter
- Optional Aluminum carrying handle.
- Construction of 16ga, anodized aluminum
- O.D. 26"w x 40" h x 14"d
- Construction of fabricated painted Steel (Optional Stainless 304, 316, 321) (Must specify)
- To meet ISO 14644 standards
- Direct drive motor blower sized to deliver 90 FPM filter face velocity.
- Electronic speed control
- 115 Volt, 15 AMP power cord 8 ft. long
- 22" x 22" x 3 1/2" 99.99% HEPA filter, gasket seal
- Discharge through perforated grill
- Optional duct connection(s) on intake and exhaust
- Side access panel for blower & filter
- Washable intake pre-filter
- Optional Aluminum carrying handle.
- Construction of 16ga, anodized aluminum
- O.D. 26"w x 40" h x 14"d

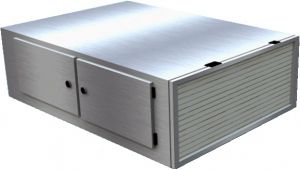

Portable Minette Series
2448-VH
Please Call for Pricing
- Construction of fabricated painted Steel (Optional Stainless 304, 316, 321) (Must specify)
- To meet ISO 14644-1 standards
- OD 30"w x 56"l x 26 1/4"h
- Direct drive motor blower to deliver 1500 CFM to 1.5" SP w/ 1 HP, 120/230V, 60 HZ, single phase
- (Optional) ECM motor with electronic speed control
- 24"w x 48"l x 12"h 99.9995% HEPA or ULPA (specify) filters, gasket seal, high capacity "V" cell rated for 1500 CFM @ 1" SP
- Aluminum frame
- Hinged & gasketed access doors on both sides for filter & blower access
- 35% Disposable prefilter in hinged grille
- Bottom or end discharge through 12" duct collar (specify)
- Door mounted pressure gauge for ULPA filter
- Construction of fabricated painted Steel (Optional Stainless 304, 316, 321) (Must specify)
- To meet ISO 14644-1 standards
- OD 30"w x 56"l x 26 1/4"h
- Direct drive motor blower to deliver 1500 CFM to 1.5" SP w/ 1 HP, 120/230V, 60 HZ, single phase
- (Optional) ECM motor with electronic speed control
- 24"w x 48"l x 12"h 99.9995% HEPA or ULPA (specify) filters, gasket seal, high capacity "V" cell rated for 1500 CFM @ 1" SP
- Aluminum frame
- Hinged & gasketed access doors on both sides for filter & blower access
- 35% Disposable prefilter in hinged grille
- Bottom or end discharge through 12" duct collar (specify)
- Door mounted pressure gauge for ULPA filter

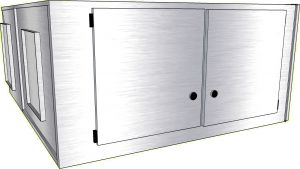

Portable Minette Series
3030-VH
Please Call for Pricing
- Construction of fabricated painted Steel (Optional Stainless 304, 316, 321) (Must specify)
- To meet ISO 14644 standards
- Direct drive motor blower sized to deliver 90 FPM filter face velocity.
- Electronic speed control
- 115 Volt, 15 AMP power cord 8 ft. long
- Rear loading, 30" x 30" x 3 1/2" 99.99% HEPA filter, gasket seal
- Removable perf grille
- Optional duct connection(s) on intake and exhaust (specify)
- Rear access panel for blower & filter
- Top, 35% disposable prefilter in SS grille
- OD 33"w x 46" h x 16"d
- Construction of fabricated painted Steel (Optional Stainless 304, 316, 321) (Must specify)
- To meet ISO 14644 standards
- Direct drive motor blower sized to deliver 90 FPM filter face velocity.
- Electronic speed control
- 115 Volt, 15 AMP power cord 8 ft. long
- Rear loading, 30" x 30" x 3 1/2" 99.99% HEPA filter, gasket seal
- Removable perf grille
- Optional duct connection(s) on intake and exhaust (specify)
- Rear access panel for blower & filter
- Top, 35% disposable prefilter in SS grille
- OD 33"w x 46" h x 16"d

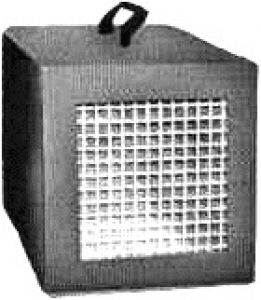

Portable Minette Series
88-VH
Please Call for Pricing
- Construction of fabricated painted steel (Optional Stainless 304, 316, 321) (Must specify)
- To meet ISO 14644 standards
- Blower: 146CFM 1/25 HP Motor/Blower 0.75FLA capable of delivering 40CFM @ 1" S.P.
- Electronic speed control
- 1 ea. 8" X 8" X 3.5" HEPA filter. 99.99% effective on particles of 0.3 microns
- 8" X 8" Discharge grille
- 8" X 8" Intake grille W/ 1/2" foam prefilter
- 115 Volt, 15 AMP power cord 8 ft. long
- Blower/Filter service access panel
- Optional duct connection (Intake, Exhaust or both - Must specify)
- Construction of fabricated painted steel (Optional Stainless 304, 316, 321) (Must specify)
- To meet ISO 14644 standards
- Blower: 146CFM 1/25 HP Motor/Blower 0.75FLA capable of delivering 40CFM @ 1" S.P.
- Electronic speed control
- 1 ea. 8" X 8" X 3.5" HEPA filter. 99.99% effective on particles of 0.3 microns
- 8" X 8" Discharge grille
- 8" X 8" Intake grille W/ 1/2" foam prefilter
- 115 Volt, 15 AMP power cord 8 ft. long
- Blower/Filter service access panel
- Optional duct connection (Intake, Exhaust or both - Must specify)

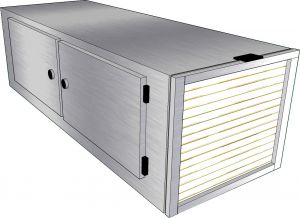

Portable Minette Series
AH-22-ST-SP
Please Call for Pricing
- Construction of fabricated painted Steel (Optional Stainless 304, 316, 321) (Must specify)
- To meet ISO 14644-1 standards
- OD 26 1/4"w x 48"l x 26 1/4"h
- Direct drive motor blower to deliver 800 CFM to 1.5" SP w/ 3/4 HP, 120/230V, 60 HZ, single phase
- (Optional) ECM motor with electronic speed control
- 24" x 24" x 12" 99.9995% HEPA or ULPA (specify) filters, gasket seal, high capacity "V" cell rated for 1500 CFM @ 1" SP, aluminum frame
- Hinged & gasketed access doors on both sides for filter & blower access
- 35% Disposable prefilter in hinged grille
- Bottom or end discharge through 12" duct collar (specify)
- Door mounted pressure gauge for ULPA filter
- Construction of fabricated painted Steel (Optional Stainless 304, 316, 321) (Must specify)
- To meet ISO 14644-1 standards
- OD 26 1/4"w x 48"l x 26 1/4"h
- Direct drive motor blower to deliver 800 CFM to 1.5" SP w/ 3/4 HP, 120/230V, 60 HZ, single phase
- (Optional) ECM motor with electronic speed control
- 24" x 24" x 12" 99.9995% HEPA or ULPA (specify) filters, gasket seal, high capacity "V" cell rated for 1500 CFM @ 1" SP, aluminum frame
- Hinged & gasketed access doors on both sides for filter & blower access
- 35% Disposable prefilter in hinged grille
- Bottom or end discharge through 12" duct collar (specify)
- Door mounted pressure gauge for ULPA filter

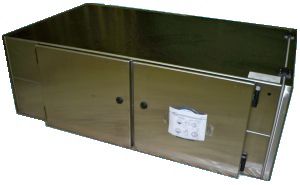

Portable Minette Series
BF-12-ST-SP
Please Call for Pricing
- Construction of fabricated painted Steel (Optional Stainless 304, 316, 321) (Must specify)
- To meet ISO 14644-1 standards
- OD 28 1/4"w x 48"l x 28 1/4"h
- Direct drive motor blower to deliver 1000 CFM to 1.5" SP w/ 3/4 HP, 120/230V, 60 HZ, single phase
- ECM motor with electronic speed control
- 24" x 24" x 12" 99.9995% HEPA or ULPA (specify) filters, gasket seal, high capacity "V" cell rated for 1500 CFM @ 1" SP, aluminum frame
- Hinged & gasketed access doors on both sides for filter & blower access
- 35% Disposable prefilter in hinged grille
- Bottom or end discharge through 12" duct collar (specify)
- Door mounted pressure gauge for ULPA filter
- Construction of fabricated painted Steel (Optional Stainless 304, 316, 321) (Must specify)
- To meet ISO 14644-1 standards
- OD 28 1/4"w x 48"l x 28 1/4"h
- Direct drive motor blower to deliver 1000 CFM to 1.5" SP w/ 3/4 HP, 120/230V, 60 HZ, single phase
- ECM motor with electronic speed control
- 24" x 24" x 12" 99.9995% HEPA or ULPA (specify) filters, gasket seal, high capacity "V" cell rated for 1500 CFM @ 1" SP, aluminum frame
- Hinged & gasketed access doors on both sides for filter & blower access
- 35% Disposable prefilter in hinged grille
- Bottom or end discharge through 12" duct collar (specify)
- Door mounted pressure gauge for ULPA filter
