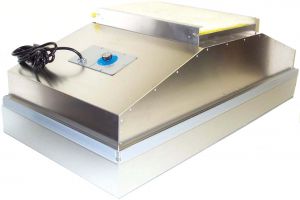

(NON-ROOMSIDE REPLACEABLE FILTER)
-Motor housing constructed of 16 ga, mil finish aluminum
& filter housing of extruded anodized aluminum
-OD 23 5/8”w x 47 5/8”l x 16”h
-Motorized impeller type blower with (1) 160w, 120V, 1.6 FLA motor
& roomside adjustable electronic speed control w/ off setting,
developing a maximum 800 CFM @ 0.75” SP
-Top mounted disposable prefilter or 12” duct connection
-99.99% Hepa filter, anodized aluminum frame, 2 3/4” separatorless media pack,
center divider w/ (2) plugged port, integral white painted steel face grille
-Unit tabs for hanging, unit weight @ 75 lbs
-Service for motors is from the top by removing the motor pack from the filter
-Filters shipped installed
-Sound rating of 54 DBA @ 90 FPM face velocity

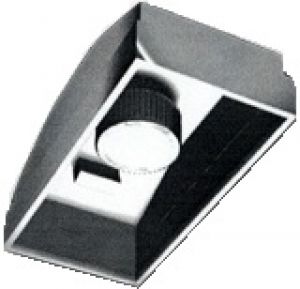

Hepa Blower Unit (Roomside Replacable housing)
-Construction of 14 ga, mil finish aluminum using inward turned folded flanges,
sealed & fastened from within, providing smooth, airtight plenum
-Motorized impeller type blower with (1) 160W, 110V, 1.8 FLA motor
& electronic speed control w/ off setting, developing 720 CFM @ 0.4” SP
-Top mounted disposable prefilters
-Bottom loading 99.99% hepa filter, upstream gel seal, anodized aluminum frame
-Integral white, expanded, metal grille
-Unit tabs for hanging, unit weight @ 70 lbs
-Service for motors is from below by removing the filter

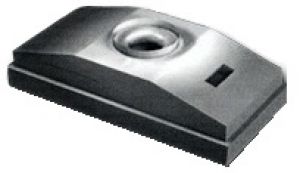

Hepa Blower
- Motor housing constructed of 16 ga, mil finish aluminum & filter housing of extruded anodized aluminum
- OD 23 5/8”w x 23 5/8”l x 16”h
- Motorized impeller type blower with (1) 240W, 120V, 2.4 FLA motor & roomside adjustable electronic speed control
w/ off setting, center divider w/ (2) ports & developing a maximum 700 CFM @ 0.75” SP
- Top mounted 12” duct collar
- Bottom loading 99.99%, upstream gel seal hepa filter, anodized aluminum frame, 2 3/4” separatorless media pack, center divider
w/ (2) plugged port, integral white expanded face grille
- Service for motors is from below by removing the filter
- Filters shipped installed
