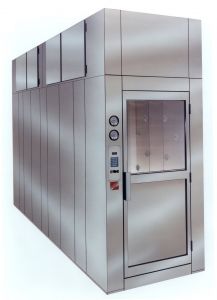

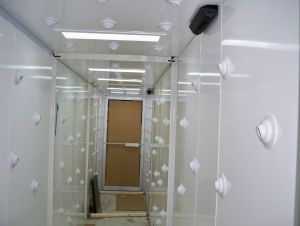

- Construction of 16 ga, type 304 SS
- OD 52"w x 144"l x 120"h
- ID 40"w x 140"l x 80"h
- Top blower box to have (2) 5 HP, 480V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- 99.99% gasket seal HEPA filter mounted in blower box, filter to be replaceable from the inside of the unit through a hatch in the ceiling
- (72) PVC nozzles on walls & ceiling @ 7000 FPM each
- Hinged & gasketed door for motor & blower on top of blower box
- Internally mounted, Nema 4, painted steel controls enclosure, w/PLC controller mounted on unit
- No floor w/ ceiling mounted sensor for automatic start
- (2) 36" x 80" Anodized aluminum frame doors w/ 1/4" safety glass window, electrically interlocked (magnet locks) w/ (3) E-stops
- 60 FC flush mounted LED lighting
- 35% Disposable prefilters in low wall returns w/ perforated SS grilles
- Unit assembled & tested in the shop prior to shipping

Air Shower (1) way tunnel
-Construction of 16ga white painted, air dried epoxy, in & out
-OD 52”w x 156”l x 120”h
-ID 36”w x 156”l x 80”h
-Top blower box to have (2) 5 HP, 230/380V, 3 phase, 50 HZ, direct drive high pressure motor blower,
developing 1800 CFM each to 4” sp, vibration isolated
- (2) 24” x 24” x 12” 99.99% gasket seal hepa filter mounted in blower box
- (80) PVC nozzles on walls & ceiling @ 6000 FPM each
-Hinged & gasketed doors for motor / blower & filter on side or top of blower box
-Internally mounted relay control system
-No floor, ceiling mounted sensor for automatic start (first on thru starts the unit
& it continue to run as long as the sensor is activated)
-No doors
-35% disposable prefilters in low wall mounted aluminum grilles
-60 FC flush mounted fluorescent lighting
-Unit shipped in (4) sections

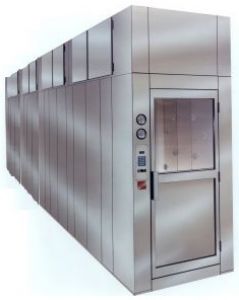

Airshower Tunnel
- Construction of 16 ga, white, air dried, epoxy painted steel, no silicon products used
- OD 52”w x 240”l x 120”h
- ID 36”w x 232”l x 80”h
- Top blower box to have (4) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 cfm each to 4” SP, vibration isolated
- 99.99% gasket seal hepa filter “V” bank type, rated 2000 CFM @ 1” SP, mounted in blower box (4) each 24” x 24” x 12”
- (144) PVC nozzles on walls & ceiling @ 7500 FPM each
- Hinged & gasketed doors for motor & blower
- Internally mounted, UL labeled control system, preprogrammed PLC controlled
- No floor, ceiling mounted sensor for automatic start
- (2) 36” x 80” anodized aluminum frame doors, clear anodized w/ ¼” clear safety glass inserts, push/pull hardware, closures & electrical interlocks w/ E-stop
- 35% Disposable prefilters in low wall mounted aluminum grilles
- Unit shipped in (8) sections

*** Tunnel Raised Floor ***
- Construction of 16 GA, galvanealed (painted or unpainted) or (304SS/316SS) (Specify)
- OD 52"w x 288"l x 126"h
- ID 39.5"w x 284"l x 80"h
- Top blower box to have (4) 5 HP, 480V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- 99.99% gasket seal HEPA filter mounted in blower box, filter to be replaceable from the inside of the unit through a hatch in the ceiling
- (96) PVC nozzles on walls & ceiling @ 7000 FPM each
- Hinged & gasketed door for motor & blower on side of blower box
- Internally mounted, Nema 4, painted steel controls enclosure, w/PLC controller mounted on unit
- Raised floor w/ ceiling mounted sensor for automatic start
- (2) 39" x 80" Anodized aluminum frame doors w/ 1/4" safety glass window, electrically interlocked (magnet locks) w/ (3) E-stops
- 60 FC flush mounted LED lighting
- 35% Disposable prefilters in low wall returns w/ perforated SS grilles
- Unit assembled & tested in the shop prior to shipping

Air Shower
-Construction of 16 ga, type 304 SS
-OD 58”w x 144”l x 120”h
-ID 36”w x 140”l x 80”h
-Top blower box to have (2) 5 HP, 480V, 3 phase, 60 HZ, direct drive high pressure motor blower,
developing 1800 CFM each to 4” SP, vibration isolated
-99.99% gasket seal hepa filter mounted in blower box, filter to be replaceable
from the inside of the unit through a hatch in the ceiling
- (72) PVC nozzles on walls & ceiling @ 7000 FPM each
-Hinged & gasketed door for motor & blower on top of blower box
-Internally mounted, Nema 4, painted steel controls enclosure, w/PLC controller mounted on unit
-No floor w/ ceiling mounted sensor for automatic start
- (2) 36” x 80” Anodized aluminum frame doors w/ ¼” safety glass window,
electrically interlocked (magnet locks) w/ (3) E-stops
-60 FC flush mounted fluorescent lighting
-35% Disposable prefilters in low wall returns w/ perforated SS grilles
-Unit assembled & tested in the shop prior to shipping

*** Three Door ***
- Construction of 16 GA, galvanealed or 304SS/316SS (Specify)
- OD 58"w x 180"l x 116"h
- ID 36"w x 180"l x 90"h
- Top blower box to have (3) 5 HP, 480/230/208V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- (3) 99.99% gasket seal HEPA filter mounted in blower box
- (120) PVC nozzles on walls & ceiling @ 7000 FPM each
- Hinged & gasketed door for motor & blower on top of blower box
- Internally mounted, NEMA 4, painted steel controls enclosure, w/PLC controller mounted on unit
- No floor w/ ceiling mounted sensor for automatic start
- (3) 36" x 80" Anodized aluminum frame doors w/ 1/4" safety glass window
- Electrically interlocked (magnet locks) w/ (4) E-stops
- Roll-up Doors Optional
- Flush mounted LED lighting
- 35% Disposable prefilters in low wall returns w/ perforated SS grilles
- Unit assembled & tested in the shop prior to shipping
- Lifting lugs for ease of assembly
